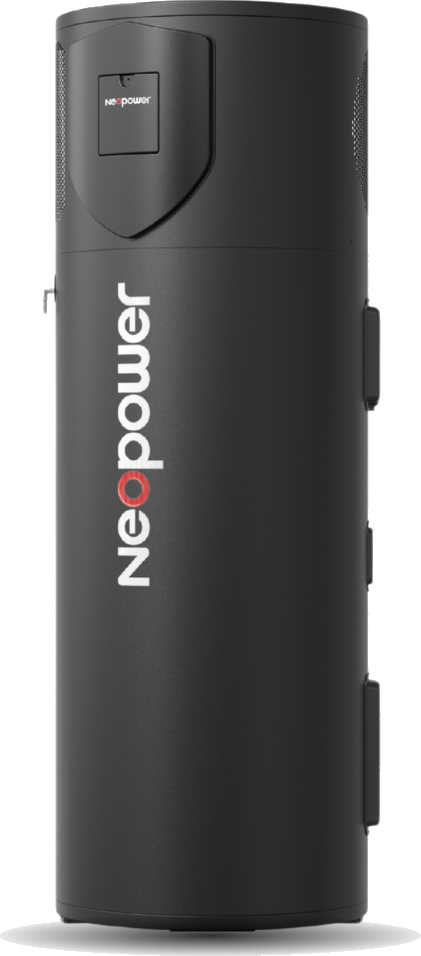

NeoPower Black Shield 320L Heat Pump Hot Water System
Model NA45-320B · Biggest rebate certificates and the highest published COP
NeoPower Black Shield · pick your size
What are you replacing?
Fully installed in VIC · rebates already off
No obligation · We reply within one business hour
The maths
Where $1,780 of your price disappears
Three separate VIC incentives stack on this unit when you're replacing a electric storage. We lodge every form — you never chase paperwork or wait on a cheque.
How the rebates workInterest-free loan option too
18 certificates
Depends on the unit you're replacing
Running costs
About $1,256 a year back in your pocket
Based on a four-person Victorian household — roughly 4,500 kWh of water heating a year at 30c/kWh. At a COP of 5.4, this unit only needs about 833 kWh to do the same job. Run it on the timer through the middle of the day and most of that comes off your roof, not the grid.
Got rooftop solar?
Time the heat pump to soak up your daytime output
Every kWh you self-consume is worth 30c instead of the 3c feed-in you'd get for exporting it — that's the solar saving baked into the numbers below.
Your estimated hot water bill
down from $1,350 on an old electric tank
$1,256
Saved per year vs electric
$686
Saved per year vs gas
1.0 yrs
Payback after rebates
3.4 t
CO₂ avoided per year
Over 10 years
$12,558
Estimate only — your actual bill depends on tariff, climate zone, solar system size and how much hot water the household chews through.
Spec sheet
Every number, straight off the data plate
Manufacturer-published figures. Anything we can't verify is shown as a dash rather than guessed.
- Model number
- NA45-320B
- Series
- Black Shield (Heat Pump 2.0)
- Tank capacity
- 320 L
- Suits household
- 4–6 people
- Rated heating capacity
- 2.9 kW at 20°C air
- Rated input power
- 0.537 kW
- COP
- 5.4 (air 20°C, water 15→55°C)
- Default water temperature
- 55°C (range 40–60°C)
- Unpacked dimensions
- Ø650 × 2090 mm
- Packed dimensions
- Ø720 × 2225 mm
- Net / gross weight
- 146 / 166 kg
- Warranty
- 7 yrs tank · 5 yrs compressor · 2 yrs labour (5 yrs on Solar VIC installs)
- Power supply
- 220–240 V / 50–60 Hz, single phase
- Max current
- 9 A
- Refrigerant
- R290 / 410 g (natural, GWP 3)
- Heat exchanger
- Microchannel
- Compressor
- Variable-speed inverter
- Defrost method
- 4-way reversing valve
- Expansion valve
- Electronic
- Air flow
- 1,000 m³/h, horizontal discharge
- Backup element
- 1.6 kW / 7.1 A
- Max water temperature
- 75°C
- Max tank pressure
- 0.85 MPa
- Ambient operating range
- -7°C to 46°C
- Weather rating
- IPX4
- Noise
- 42–48 dB(A), mode dependent
- Tank capacity
- 320 L
- Suits household
- 4–6 people
NeoPower Black Shield · Heat Pump 2.0
Inverter grunt with a COP of 5.4
The Black Shield is NeoPower's second-generation unit, built by IMACA (est. 2010, Scoresby VIC). A variable-speed inverter compressor, microchannel heat exchanger and EC fan motors get it to a published COP of 5.4 — which is why it pulls some of the biggest STC and VEEC numbers on the market. Matte black ABS shell over an enamel-coated, extra-thick carbon steel tank.
Four operating modes
- Standard mode
- Heat pump only. Sits at 53°C on the 270L and 55°C on the 210L and 320L, adjustable 40–60°C. The everyday setting.
- Eco mode
- Heat pump only at 60°C, range 40–60°C. Squeezes the most out of every kilowatt — best paired with a daytime solar timer.
- Hybrid mode
- Heat pump lifts the tank to 60°C, then the 1.6 kW element takes it to 70°C. For a full house or a cold snap.
- Element mode
- Element only, 60°C default and up to 70°C. Backup if the compressor is ever out of action.
Warranty
- Tank
- 7 years
- Compressor
- 5 years
- Labour5 years on installs under the Solar Victoria Solar Homes Program
- 2 years
COP 5.4
5.4 kW of heat out for every 1 kW in at 20°C air — one of the highest published figures going around, and the reason it pulls top-shelf STC and VEEC numbers.
Inverter compressor
Variable-speed rather than the old on-off cycling. It matches output to what the house is actually using, so temperatures stay steady and running costs drop.
R290 natural refrigerant
410 g of propane with a global warming potential of 3 — around a thousandth of the older synthetic gases plenty of brands still run.
Silent mode at 42 dB
Quiet enough for a narrow side-of-house install next to a bedroom window. Runs 42–48 dB(A) depending on the mode you pick.
Colour touch screen + Wi-Fi
Smart colour touch panel on the unit, plus the free Smart Life app on Android and iOS for scheduling, monitoring and Modbus smart-home integration.
Matte black ABS shell
Enamel-coated, extra-thick carbon steel tank inside a matte black ABS shell built to shrug off Victorian weather and coastal salt.
Rebate certificates across the range (VIC metro, zone 4)
| Model | Tank | STCs | VEECs (elec) |
|---|---|---|---|
| NA43-210B | 210 L | 18 | 10 |
| NA44-270B | 270 L | 18 | 10 |
| NA45-320B | 320 L | 18 | 10 |
NeoPower's published certificate counts as at 2026. Certificate values shift with the market, so we confirm the dollar figure on your quote.
Straight talk
Our honest take on NeoPower
- Published COP of 5.4 — top of the pack, which drives big STC and VEEC counts
- Variable-speed inverter compressor instead of on-off cycling
- 7-year tank and 5-year compressor cover, R290 natural refrigerant
- Colour touch screen, Wi-Fi app control and Modbus smart-home integration
- Labour cover is 2 years unless it's installed under Solar VIC (then 5)
- Heat pump stops at -7°C ambient before the element steps in
- Newer 2.0 hardware, so less long-term field history than the legacy names
How it happens
From quote to hot water in about a week
Quick chat
Tell us what you're replacing and where it sits. Fixed price back the same day.
Rebate paperwork
We check eligibility and lodge Solar Victoria, STCs and VEECs for you.
Install day
Old unit removed, new one plumbed and wired. Usually done inside a day.
Aftercare
Warranty claims and servicing handled through us — one number to ring.
Owners
What Victorians say
"Swapped our old electric tank. The bill dropped straight away and the crew sorted every rebate form."
Sarah M. · Melbourne
"Reckoned it'd struggle in winter — it doesn't. Water's hot on frosty mornings and you can barely hear it."
James T. · Geelong
"Price was exactly what was quoted. No surprises, rebates applied upfront. Easy."
Priya K. · Ballarat
FAQs
Questions we get asked
Want this one at $1,296 installed?
Send us a couple of details and we'll confirm your rebate eligibility and lock the price in writing. No sales pressure, no obligation.
Fully installed · incl. rebates
$1,296
